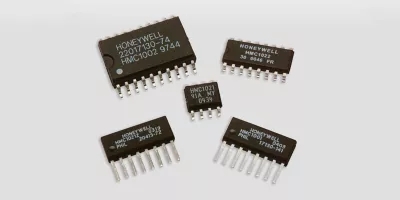

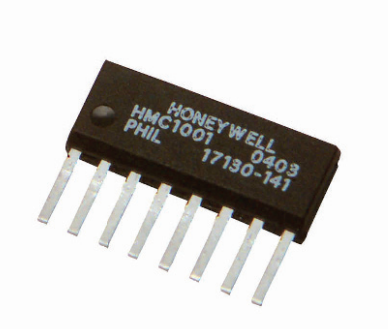

The Honeywell HMC100x and HMC102x magnetic sensors are one and two-axis surface mount sensors designed for low field magnetic sensing. By adding supporting signal processing, cost effective magnetometers or compassing solutions are enabled. Th ese small, low cost solutions are easy to assemble for high volume OEM designs. Applications for the HMC100x and HMC102x sensors include Compassing, Navigation Systems, Magnetometry, and Current Sensing.

FEATURES

?Surface Mount 1 and 2-Axis Sensors

? Low Cost

? 4-Element Wheatstone Bridges

? Low Voltage Operations (2.0V)

? Available in Tape & Reel Packaging

? Patented Offset and Set/Reset Straps

?  Wide Field Range (up to +/-6 Oe)

BENEFITS

?  Easy to Assemble & Compatible with High Speed SMT Assembly

?  Designed for High Volume, Cost Effective OEM Designs

?  Low Noise Passive Element Design

?  Compatible for Battery Powered Applications

?  High Volume OEM Assembly

?  Stray Magnetic Field Compensation

?  Sensor Can Be Used in Strong Magnetic Field Environments
